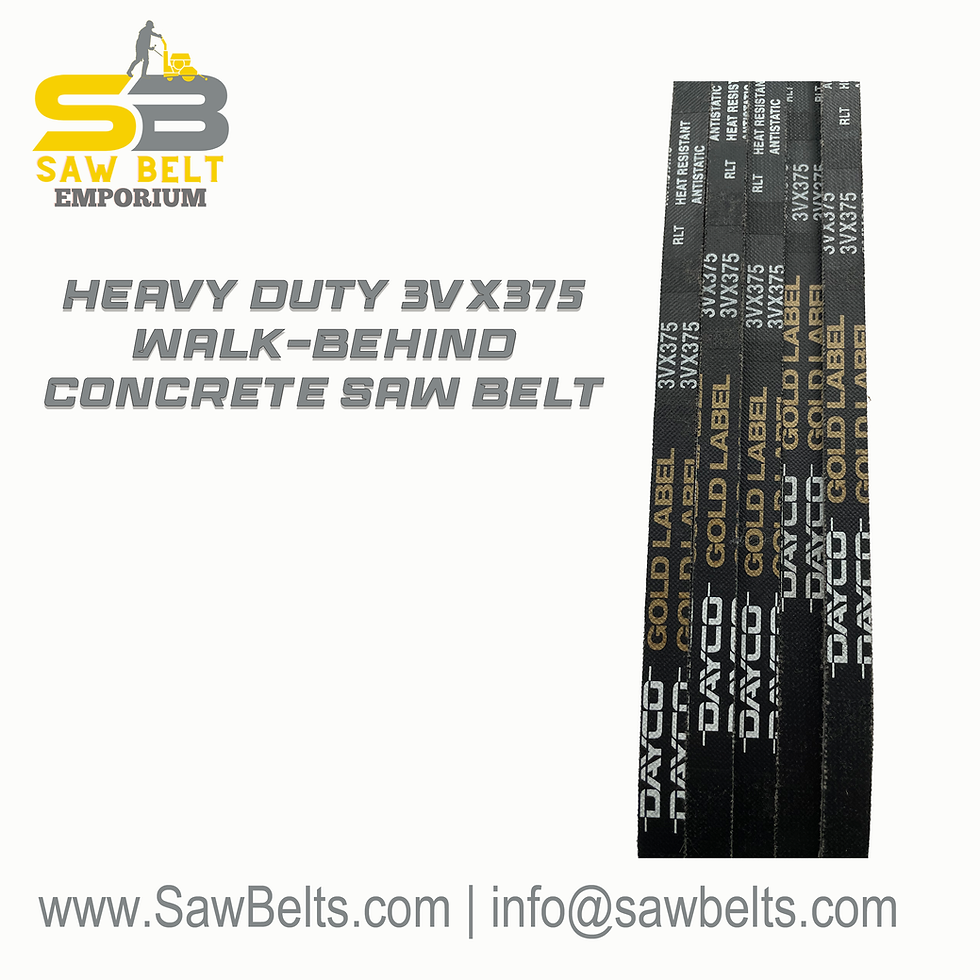

3VX375 Walk-Behind Concrete Saw Belt | 541200561
Part Number Description: 3VX375HD
Number of Ribs: 1
Profile: 3VX
Width: 9 mm | 23/64 in
Height: 10 mm | 25/64 in
Length: 953 mm | 37.5 in
Weight: .05 Kg | .11 lbs
Concrete Saw Cross Reference:
Core Cut 2500037
Husqvarna 541200561 or 541 20 05-61
Norton Clipper Model Number 70184632530 or 232036
TK Equipment 04143VX375
Other Cross Reference Part Number:
Gates 94120375
Dayco 434203, 434217
Concrete Saw Compatibility:
- CC-1000 - 2.5 HP. 2-Belts required.
- CC1800XL - Electric. 4 Belts required.
- CC1820XL - Gas 24". 4 Belts required.
- CC7574DKV & -3 (1 SPEED) 26” & 42”. 20 Belts required.
- CC7574DD & 3 (1 Speed) 26" & 42". 20 Belt Required.
- Norton Clipper C20 Series - 20HP 16", 20" and 24". 4 Belts Required.
The unique banding of multiple belts creates one integrated unit, with a common surface. This not only ensures the same length across all belts, but it also keeps the belts securely in place. Every belt, thus, pulls its weight and is not in danger of slippage. This cost-effective solution minimizes downtime and reduces maintenance.
-
Ideal solution for shock or pulsating loads
-
Designed for heavy-duty drives where space is critical, especially where small or sub-minimal sheave diameters are required
-
Recommended solution for multiple belt drives where single belts vibrate or turn over
-
Pulley Standards: RMA IP22
Tie Band Fabric: PET/Cotton, CR Impregnated
-
Abrasion, wear, and Oil Resistance
-
Prevents Vibrations and belt turnover
Top Fabric:
-
Abrasion, Wear Resistant
Tension Cords: High Modulus Polyester
-
Superior Dimensional Stability
-
High Resistance to overloads and shock loads
Special Cogs Profile Engineered for:
-
Additional Resistance to Bending Stress
-
Extra flexibility for smaller pulleys
-
Cooling Effect
Compression Rubber:
-
Excellent Abrasion resistance, High Coefficient of friction (higher Power capacity compared to wrapped Belts)
-
Limited Oil Resistance, Excellent Heat Resistance
Static Conductivity ISO 1813, MM: Made for Match RMA Wedge Profile according to IP20/IP21
Proposition 65 compliant
-
