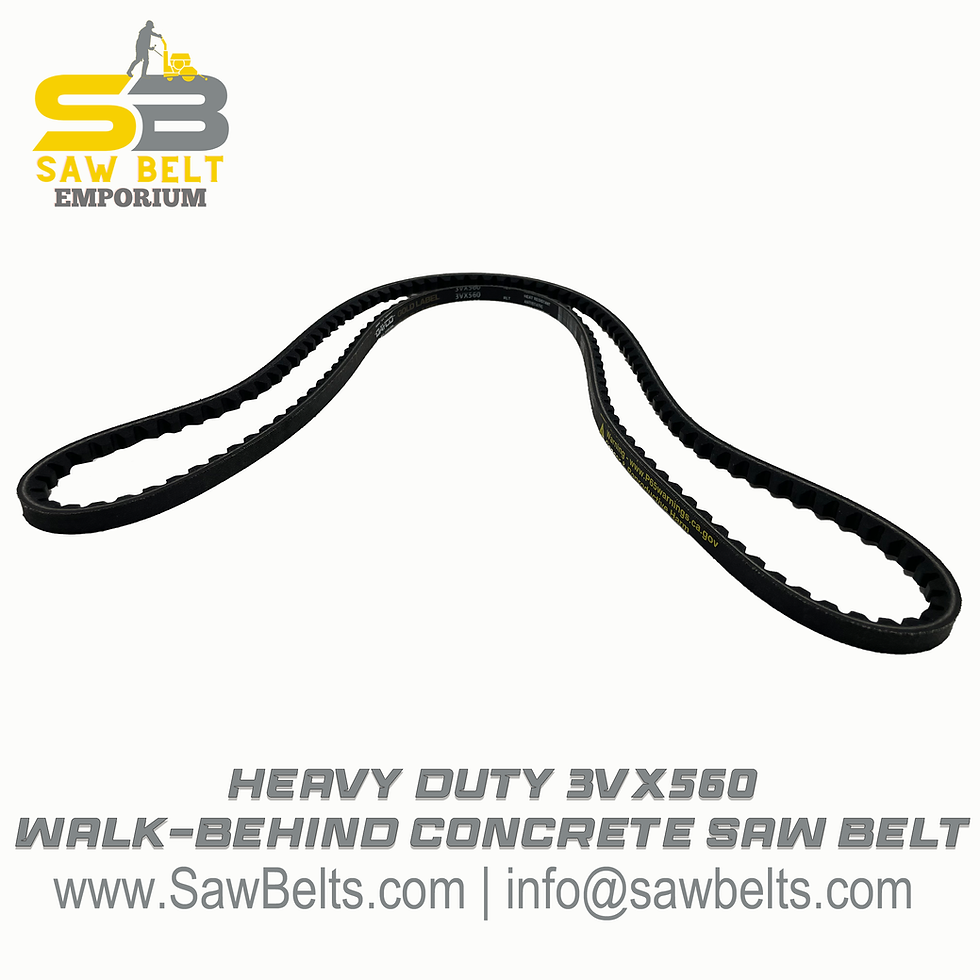

3VX560 Walk-Behind Concrete Saw Belt | 2500188 Core Cut
Part Number Description: 3VX560 HD
Number of Ribs: 1
Profile: 3VX
Width: 9 mm | 23/64 in
Height: 10 mm | 25/64 in
Length: 1422 mm | 56 in
Weight: .08 Kg | .17 lbs
Concrete Saw Cross Reference:
Core Cut 2500188
Other Cross Reference Part Number:
A and I Products A-3VX560
ALLEN'S AUTO PARTS GAT3VX560
GEHL 020-31847
GILSON 23472
GSI/GRAIN SYSTEMS, INC MHC00155, MHC00691
JOHN BEAN 1273163
MACK 50.01.086.01
MBL RC3VX560
MITSUBOSHI RC3VX560
OPTIBELT 3VX560XEP
PLYMOUTH 23472
QUINCY 128085-356
ROOF 511G
THERMO KING 2925B06-H15, 78-0346
YAZOO 205-356
Concrete Saw Compatibility:
Core Cut CC5048DCV - 14" & 20"
Core Cut CC3740E - 20", 26", 30" & 36"
The unique banding of multiple belts creates one integrated unit, with a common surface. This not only ensures the same length across all belts, but it also keeps the belts securely in place. Every belt, thus, pulls its weight and is not in danger of slippage. This cost-effective solution minimizes downtime and reduces maintenance.
Ideal solution for shock or pulsating loads
Designed for heavy-duty drives where space is critical, especially where small or sub-minimal sheave diameters are required
Recommended solution for multiple belt drives where single belts vibrate or turn over
Pulley Standards: RMA IP22
Tie Band Fabric: PET/Cotton, CR Impregnated
Abrasion, wear, and Oil Resistance
Prevents Vibrations and belt turnover
Top Fabric:
Abrasion, Wear Resistant
Tension Cords: High Modulus Polyester
Superior Dimensional Stability
High Resistance to overloads and shock loads
Special Cogs Profile Engineered for:
Additional Resistance to Bending Stress
Extra flexibility for smaller pulleys
Cooling Effect
Compression Rubber:
Excellent Abrasion resistance, High Coefficient of friction (higher Power capacity compared to wrapped Belts)
Limited Oil Resistance, Excellent Heat Resistance
Static Conductivity ISO 1813, MM: Made for Match RMA Wedge Profile according to IP20/IP21
Proposition 65 compliant
