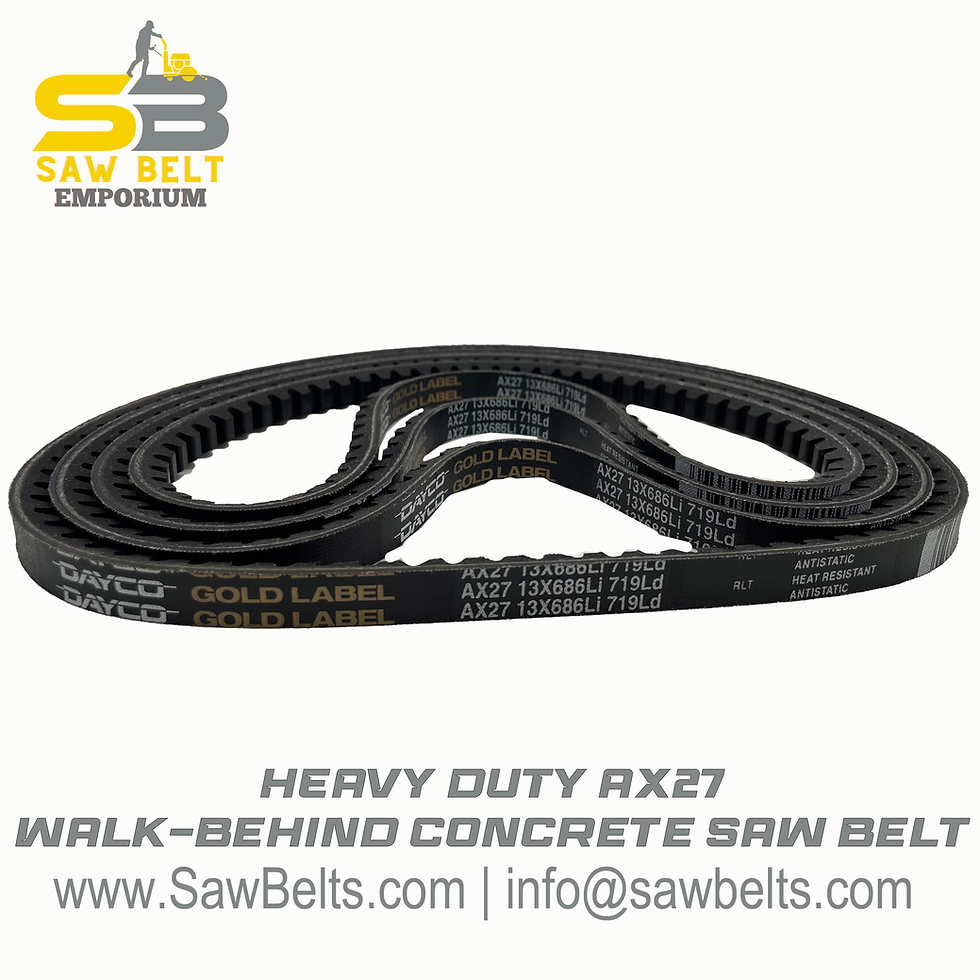

AX27 Concrete Saw Belt | 10253 EDCO

Part Number Description:  AX27

Number of Ribs: 1

Profile: AX

Width: 13 mm | 1/2 in

Height: 8 mm | 5/16 in

Length: 686 mm | 27 in

Datum Length: 737 mm | 29 in

Weight: .06 Kg | .14 lbs

Concrete Saw Cross Reference:

EDCO 10253

Other Cross Reference Part Number:

Accurex 345519 Belt

Carrier P463-AX27

Doorking 2600-690

Greenheck 345519

Liftmaster C6 16-4L290

Mar 74561

NAPA NBHAX27

Zap 600614

5-602027

809135

8.715-670.0

87156700

Concrete Saw Compatibility:

• EDCO CPL8 Scari-Lite Crete-Planer - 2 Belts Recommended

• EDCO 45500 RS Concrete Saw - 3 Belts Recommended

• EDCO SK 14 9H Concrete Saw - 3 Belts Recommended

• EDCO SK14 11H Concrete Saw - 3 Belts Recommended

• EDCO SK14 12KC Concrete Saw - 3 Belts Recommended

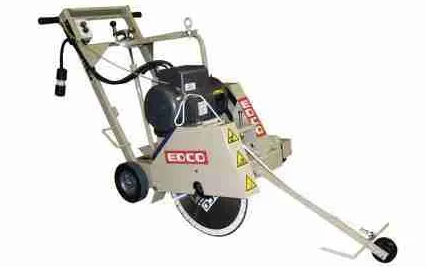

• EDCO E4 13.5RS Concrete Saw - 3 Belts Recommended

The unique banding of multiple belts creates one integrated unit, with a common surface. This not only ensures the same length across all belts, but it also keeps the belts securely in place. Every belt, thus, pulls its weight and is not in danger of slippage. This cost-effective solution minimizes downtime and reduces maintenance.

• Ideal solution for shock or pulsating loads

• Designed for heavy-duty drives where space is critical, especially where small or sub-minimal sheave diameters are required

• Recommended solution for multiple belt drives where single belts vibrate or turn over

• Pulley Standards: RMA IP22​

Tie Band Fabric: PET/Cotton, CR Impregnated

• Abrasion, wear, and Oil Resistance

• Prevents Vibrations and belt turnover

Top Fabric:

• Abrasion, Wear Resistant

Tension Cords: High Modulus Polyester

• Superior Dimensional Stability

• High Resistance to overloads and shock loads

Special Cogs Profile Engineered for:

• Additional Resistance to Bending Stress

• Extra flexibility for smaller pulleys

• Cooling Effect

Compression Rubber:​

• Excellent Abrasion resistance, High Coefficient of friction (higher Power capacity compared to wrapped Belts)

• Limited Oil Resistance, Excellent Heat Resistance

Static Conductivity ISO 1813, MM: Made for Match RMA Wedge Profile according to IP20/IP21

Proposition 65 compliant
